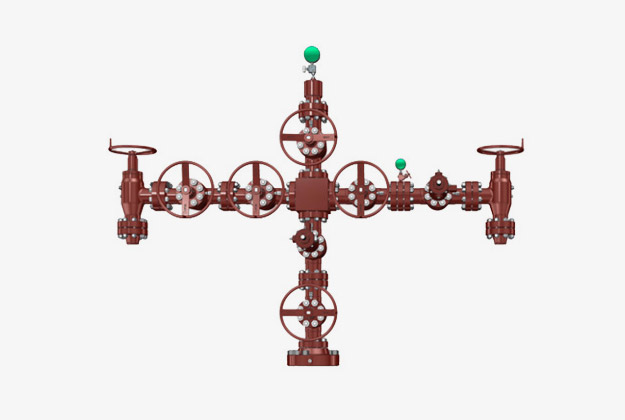

Jereh supplies high quality wellhead products, such as, christmas trees, casing head, tubing head, and other auxiliary equipments suitable for land and offshore applications to explore, develop and produce oil. Our wellhead and christmas tree are designed, manufactured, tested conforming to API 6A with high quality as FMC wellhead or GE wellhead does. The wellheads are available in pressure rating up to 15,000PSI, load rating up to 500 tons, material classes from AA through FF, temperature classes from L through V, product specification levels from 1 through 4 and PR1 & 2, and also meet NACE Standard MR0175.
Design and manufacture conform to API spec 6A.
Modified forged alloy steel is applied for main pressure-containing parts and flanges. Special heat treatment is conducted for better performance in H2S service.
| Technical Specification | |
|---|---|
| Bore Size | 2 -1/16"~5 -1/8" |
| Working Pressure | 2,000psi~15,000psi |
| Material Class | AA~FF |
| PSL | PSL1~PSL4 |
| PR | PR1~PR2 |
| Working Medium | Drilling Fluid, Oil, Gas (H2S, CO2)，Water |
