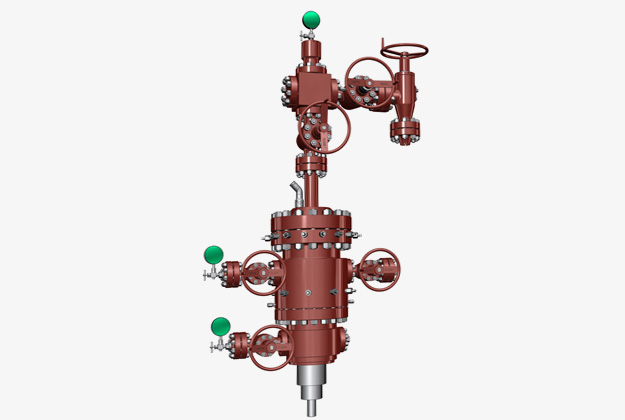

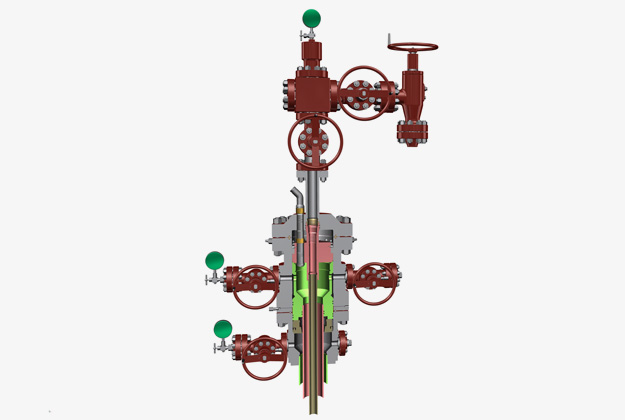

Wellhead and Christmas tree products are used to monitor well pressure, adjust oil/gas well flow and prevent the release of hazardous liquid and gas from entering into air or water during drilling and oil & gas production. They can be applicable for acidizing, fracturing, water flooding and testing as well. Jereh wellhead and Christmas tree products are designed in compliance with API 6A (20th edition) and NACE MR0175. We are dedicated to providing safe and reliable wellhead equipment for global customers.
Jereh wellhead equipment cover a full range of wellhead and Christmas trees, casing heads and tubing head assembly, applicable for working pressure up to 15,000 psi, available in various sizes and types, including conventional wellhead, multi bowl wellhead, integral wellhead, dual tubing wellhead and ESP wellhead.
As for ESP Wellhead:
Suitable for ESP cables of various sizes, reliable insulation and sealing capability
Equipped with cable penetrator and SSV control lines
| Specification | 2 1/16"~4 1/16" |
| Working Pressure | 2,000~15,000psi |
| Working Medium | Crude oil, natural gas, mud and gas (H2S or CO2) |
| Temperature Level | K~X (-60℃~180℃) |
| Material Grade | AA, BB, CC, DD, EE, FF, HH |
| Manufacturing Level | PSL1~PSL3G |
| Performance Level | PR1~PR2 |
