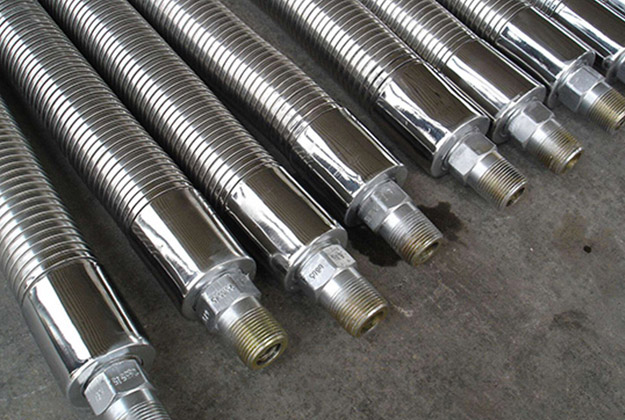

Applicability:Hydraulic control pipeline for BOP control equipments.
Temperature Range: Ambient temperature -20℃~+121℃.
Structure：A structure of lining,reinforcement,flame-retardand and thermal insulation layer,and protection cover with coupling patent design,patent No: ZL 00214874.9.
Property:Under temperature of 1093℃ (2000℉), the product can perform well for more than consecutive 5 minutes under working pressure.The product is successfully approved as the National Torch Plan project in 2002 by State Science and Technology Committee considering its advanced technology and strong practicability.
Standard:API Spec 16D、Q/0681、SLT001
in. mmI.D |
MPa W.P |
MPa T.P |
mm Min Bending Radius |
in Coupling Thread |
|---|---|---|---|---|
| 3/4 19 | 14 | 21 | 240 | NPT1,R1 |
| 3/4 19 | 21 | 31.5 | 240 | NPT1,R1 |
| 3/4 19 | 35 | 52.5 | 280 | NPT1,R1 |
| 3/4 19 | 45 | 67.5 | 280 | NPT1,R1 |
| 1 25 | 14 | 21 | 300 | NPT1,R1 |
| 1 25 | 21 | 31.5 | 300 | NPT1,R1 |
| 1 25 | 35 | 52.5 | 360 | NPT1,R1 |
| 1 25 | 45 | 67.5 | 360 | NPT1,R1 |
