Electrify Your Hydraulic Fracking Operations
Smarter Oilfield Operations with the IntelliFrac
  • ESG Compliant
    Meet Environmental Regulations
    Zero CO2 emissions are released during hydraulic pumping operations since zero gallons of diesel are consumed. IntelliFrac runs purely on electricity.
    IntelliFrac operation noise is less than 90 decibels, leading to less noise pollution.
  • Reliable Operations
    Reduce Downtime and Operational Costs
    The IntelliFrac electric engine lasts longer between repairs than traditional diesel engines, preventing site downtime and additional maintenance costs.
    Installation is easy, and rig setup time is speedy since IntelliFrac requires fewer power supply cable connections.
  • Increase Operations Mobility
    Compact and Mobile
    A single truck can carry all the required auxiliaries for electric hydraulic fracking, increasing mobility by giving oil production companies the advantage of quickly switching sites.
  • Safety Features
    Ensuring Safe Operations
    IntelliFrac electric hydraulic fracturing operations can be monitored or diagnosed remotely using data vans which Jereh can provide.
    No hot fueling is needed, like with diesel-hydraulic fracturing units.
    Less silica dust is released during processes reducing exposure and health risks for the crew.
IntelliFrac vs. Outdated Diesel Frac
Jereh Energy Equipment and Technologies Corporation has the ability to customize IntelliFrac according to your hydraulic fracturing pumping power needs. Below are some of the key takeaways of owning and managing a electric fracturing fleet for your hydraulic fracturing operations.
Maintenance cost
Noise
Pumping Power
Fleet Size
Fuel
FUEL
  • IntelliFrac
    Fueling on location; Maintenance on site
  • Outdated Diesel Frac
    No fueling system; No Oil/Filter changes
parameters
10000HP
Plunger Dia.(4.5″)
Plunger Dia.(5″)
  • Carrier
    Trailer
  • Electric Motor
    2×3,720 kW VF Motor
  • Motor Voltage
    3,300 VAC
  • VFD
    2×3,720 kW
  • Max. Working Pressure
    15,000 psi (103.5 MPa)
  • Max. Flowrate
    1,150 GPM (4,352 LPM)
  • Weight
    140,970 lbs (64,000 kg)
  • Overall Dimensions
    709×102×157 in (18,000×2,590×4,000 mm)
  • Carrier
    Trailer
  • Electric Motor
    2×3,720 kW VF Motor
  • Motor Voltage
    3,300 VAC
  • VFD
    2×3,720 kW
  • Max. Working Pressure
    12,800 psi (88 MPa)
  • Max. Flowrate
    1,418 GPM (5,380 LPM)
  • Weight
    140,970 lbs (64,000 kg)
  • Overall Dimensions
    709×102×157 in (18,000×2,590×4,000 mm)
PRODUCT SHOWCASE
PREV
NEXT

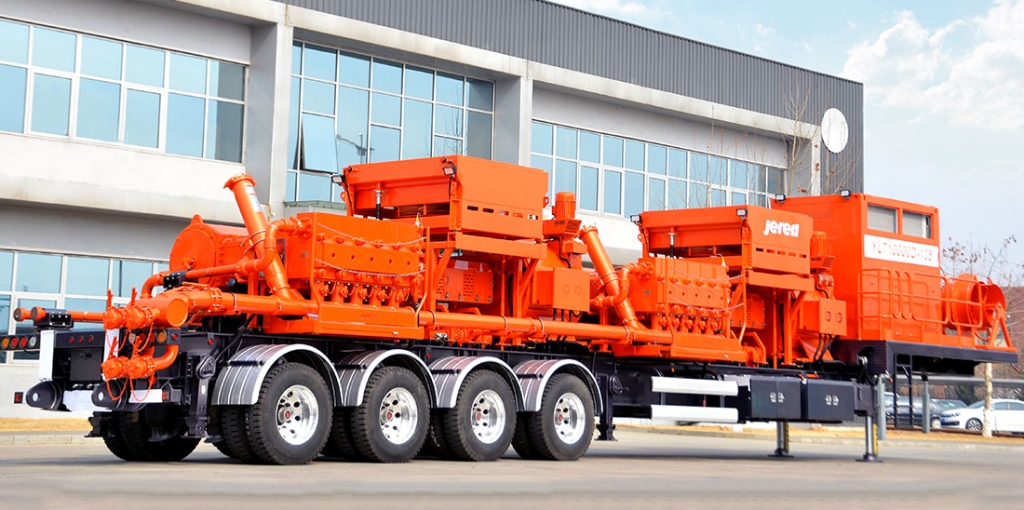

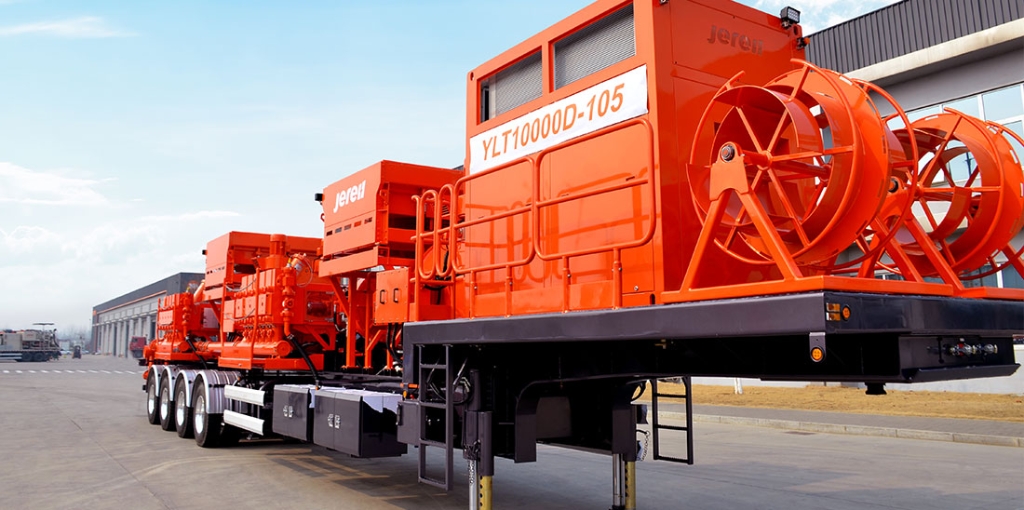

Jereh Electric Frac. Pumper in Xinjiang
Jereh Electric Frac. Pumper in Xinjiang
Applications
  • Operation Flowrate & Pressure:
    1.6m³/min@50MPa
  • Daily Operating Time:
    20 hrs
  • Accumulated Operating Time:
    5,000 hrs
